The product information serves as references and can’t be used for bidding
ELECTROMAGNETIC FLOW METER
Model
MF
Size
15-800 mm
Applicable Water
Raw Water, Tap Water, Waste Water, Hot Water(90℃), Chemical Liquid(based on requirement)
Best choice for Water Distribution Network, Irrigation, Waste Water Treatment, and Industrial water application.
" Available for sewage water, clean water, and various needs of wastewater management  "

Accuracy
-Based on Faraday's laws
-Bi-directional flow measurement
-Measuring range:0.1~15 m/s with accuracy ± 2%FS
-Fluid Conductivity ≧ 5μs/cm
Convenience
-Remote LCD Display
-Mains Electricity Power Supply
-Customized lining, electrode, and flange connection
Reliability
-Sensor IP68, Converter IP65
-Error message for Enpty pipe, System exciting alarm, Low flow cut off,
-Flow high limit alarm, Flow low limit alarm, etc.
-Real time display of flow rate, total accumulation, forward/ reverse accumulation


Application
-Hot water/ Irrigation/ Sea Water/ General industry
-Water supply/ water distribution network
-Wastewater treatment plant
ModelMF
Diameter (mm/inch)50~800mm / 2"~32"
Measure PrincipleFaradays Law
Flow range0.3~10m/s
Accuracy±2%FS
Operating
Pressure
4.0Mpa (DN15~DN80)
1.6Mpa (DN100~DN150)
1.0Mpa (DN200~DN1000)
ApplicationsRaw water, clean water, sewage water, all fluids with conductivity≥5μs/cm
Digital OutputRS-485 (Modbus RTU), Pulse(0.001L~1.0 m3/p)
Analogue Output4-20mA (load current<750Ω)  error:0.1%FS±10μA
Power dissipationLower than 20W
Power supplyAC power 110~240VAC (-15%/ +10%)
Frequency 48~63 Hz
Ambient Temperature-20℃~60℃
Ambient Humidity5%~90%
Body materialCarbon Steel, Stainless Steel
Connection threadFlange (DIN, ANSI, JIS& other standards upon requirement)
Standard distance from converter to sensor3m
Lining materialCR, PTFE, Ceramic (Optional)
ElectrodeSUS316L, HC (Optional)
Enclosure ratingConverter IP 65, Sensor IP 68
Suitable Site

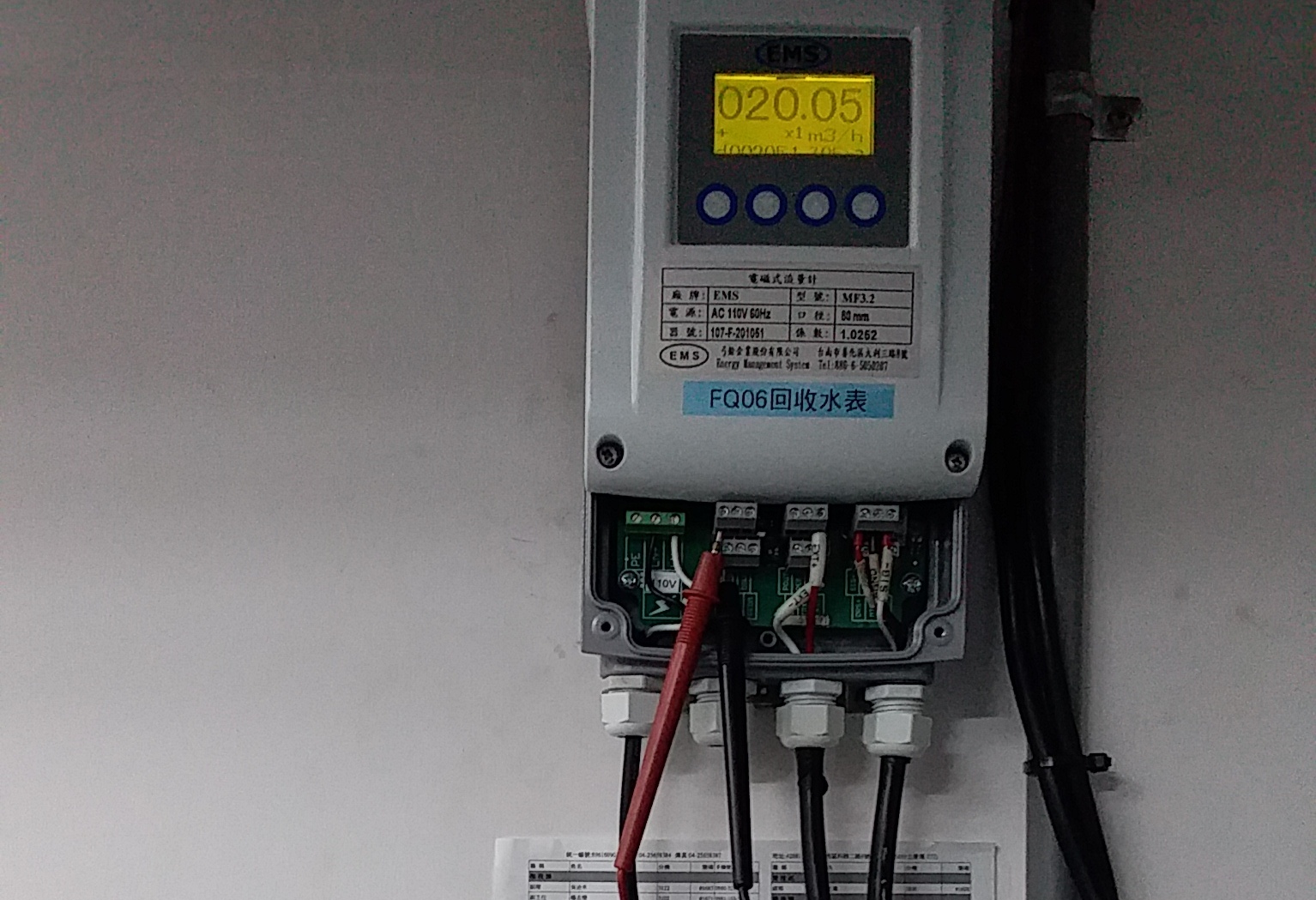

Recycled Water Measurement- Yung Shing Optical
Recycled Water Measurement- Yung Shing Optical
Install MF Series in Yung Shing Optical for recycled water measurement.
MF Series is suitable for measuring various fluids, and can assist clients to precisely monitor the water consumption.

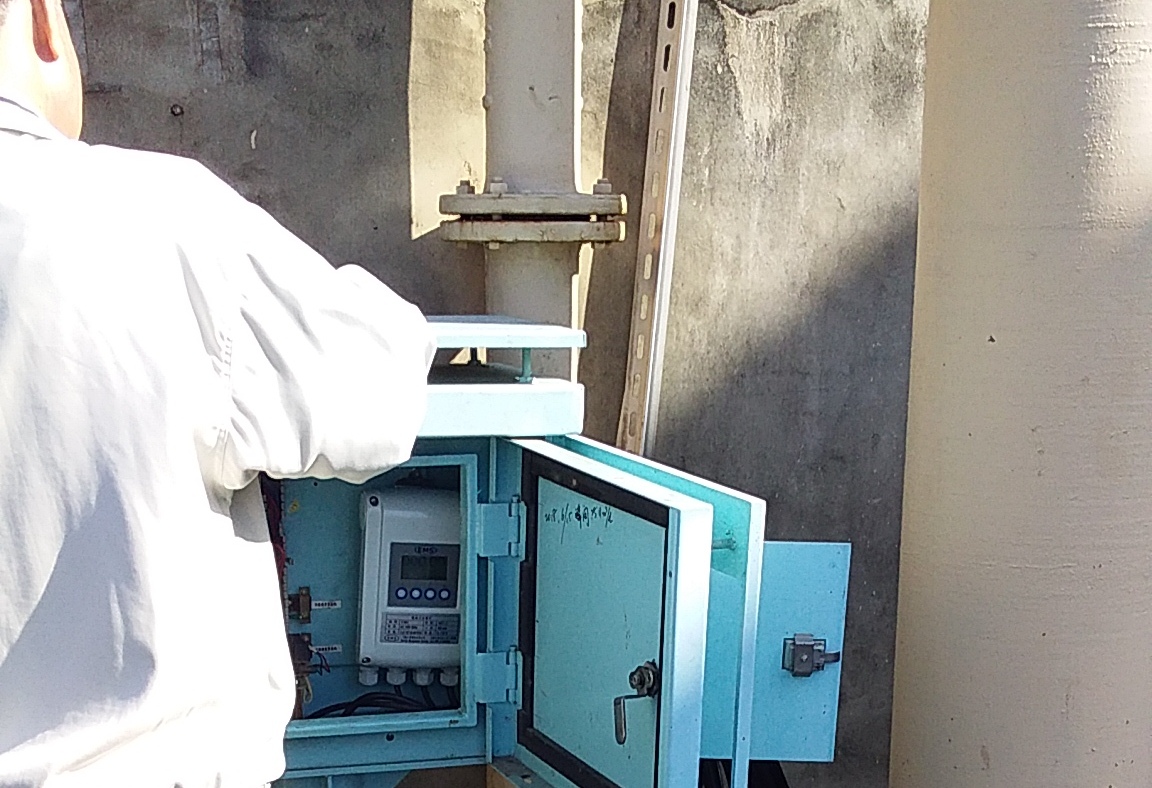

Agricutural  Water Measurement
Agricutural Water Measurement
MF Series has been installed in various farms and ranches for monitoring agricultural water consumption.
This can effectively reduce water fee by avoiding water waste.
Product Training for Yuan Lin WTP
Product Training for Yuan Lin WTP
With wide scope of application, MF Series is suitable for measurement in WTP and water supply network.
Besides quality products, EMS also supplies product training service for clients.
