NB-IoT Datalogger - MINI-N series
Model
MINI-N
Compact data logger for NB-IoT data transmission
" Compact data logger for water network to monitor flow accumulation"

Features
-User-defined logging and transmission intervals
-Data logging of totalizer, and smart functions
-Build-in 3 years battery lifespan
-Set up parameters and download historical data by USB cable
-Remote parameters configuration
-Robust IP68 rated housing

Applications
-District/zone flow monitoring
-Commercial and industrial monitoring
-NB-IoT communications


PHYSICAL DESIGN

Dimensions (H*W*D)

98 x 70 x 71 mm

Weight

330 g

Operating temperature

-25℃ ~70℃

Enclosure class

IP68

Power supply

3 years build-in battery lifespan (daily transmission)

CONNECTIONS

Digital signal

EMS digital water meter

COMMUNICATIONS

Frequency band

FDD Band 3 (1800 MHz) & FDD Band 8 (900 MHz)

Distance

Open space: 1 km

Meter box (cast iron): 300 m

SIM

Normal SIM (Nano SIM and Micro SIM are not available)

Antenna

Internal antenna

CONFIGURATION

Wired

Cable configuration, USB connection to PC

Remote

Wireless configuration by NB-IoT

LOGGING CAPACITY & TRANSMISSION FREQUENCY

Logging

Hourly Logging, up to 4,000 logs

Transmission

Logging frequency from 1 Min. to 1440 Mins.

Transmission frequency from 1 Min. to 1440 Mins.

Suitable Site

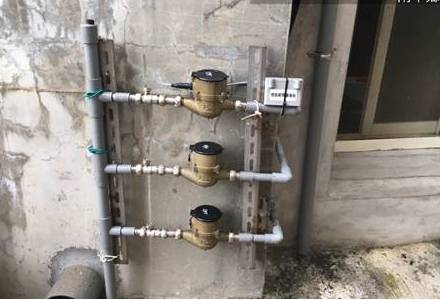

AMR Project of Matsu Island
AMR Project of Matsu Island
To upgrade the water meters and build up AMR system for Matsu island.
We installed totally 3000 TH Series with NB-IoT converters, Mini-N, for data collection and transmission.
