The product information serves as references and can’t be used for bidding
RS-485/Modbus Transfer Interface
Model
RMT
Advanced RS-485/Modbus signal transfer for data transmission and sub-metering solution.
" Flexible RS-485/Modbus applictions to monitor water usage"

Features
-User-defined transmission intervals
-Data transmission of totalizer, forward/reverse flow, and smart functions
-Submetering application available (RMTs)
-Connect Max. 40 water metes (RMTs)
-Robust IP68 rated housing
Applications
-High-rise building water usage monitoring
-Commercial and industrial water usage monitoring
-Connect to converter to send data by 3G/4G/GPRS


PHYSICAL DESIGN

Case material

ABS

Dimensions(H*W*L)

54 mm x 88mm x 78mm

Weight

300 g

Operating temperature

-25℃ ~70℃

Enclosure class

IP68

Mains electricity

Vin=+9~+24VDC (above 100mA)

CONNECTIONS

Digital signal

EMS digital water meter

COMMUNICATIONS

Communication Distance

From RMT to water meter: 100 m

From RMT to system: 1000 m

Communication Wire

EMS water meter input: 22 AWG 3-core shielded wire

RS-485/Modbus output: 22~26 AWG 4-core insulated twisted pair wire

Data Format

1 Stop Bit, No Parity, 8 Data Bits

Baud Rate

4800, 9600, 19200, 38400, 57600, 115200 bps

CONFIGURATION

Wired configuration

RS-485-USB cable connection to PC

Suitable Site

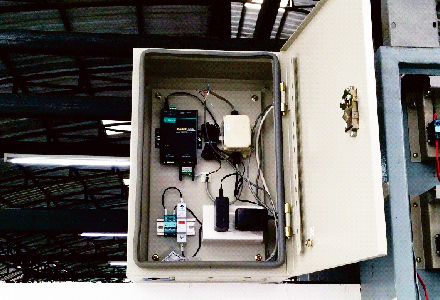

Thailand Nurse Dormitory inside Public Hospital Area
Thailand Nurse Dormitory inside Public Hospital Area
Totally installing 70 Multi-jet water meters with 3 RMTs (Modbus) for smart water metering.

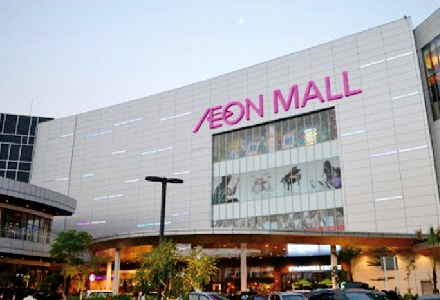

Indonesia AEON MALL
Indonesia AEON MALL
Totally installing 300 smart water meters with RMTs in Indonesia AEON mall.
The product information serves as references and can’t be used for bidding
